ScreenPRO 300 Computer-to-Screen (CTS) Imaging System
Features a single Ricoh GEN 4 printhead. The Screen PRO 300 is perfect for smaller shops where productivity and cost are key considerations. The system supports screen frame sizes of up to
26" x 36" (66 x 91 cm ). The ScreenPRO 300 can easily produce up to 100 screens
per shift. Without on-board exposure, the price point is kept to a minimum, allowing customers to use their existing standalone exposure units.
The ScreenPRO 300 is designed to fit through a 32" (81 cm) doorway, and comes complete with computer, monitor, and software that gives operators complete control of all print & RIP parameters. The ScreenPRO 300 shares the high-quality build with the ScreenPRO 600, and includes the same exceptional technical and customer service and support that Advanced Inkjet customers have come to expect!
Adapters are available for all pre-registration systems including ROQ, MHM, and M&R.

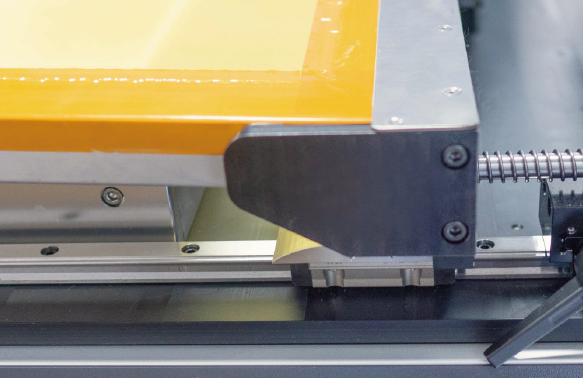

Adjustable Frame Fixture
Adjustable Frame Fixture provides fast setup for screen frames of various sizes, up to 635 mm × 914.4 mm (25" × 36").

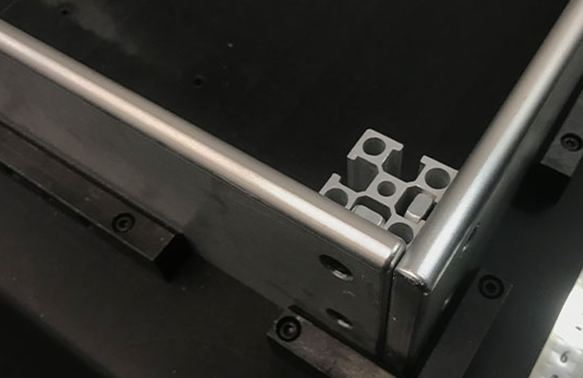

Locating Blocks and Support Frames
The screen support module ensures perfect imaging and exposure.
Shuttle Gantry Design
The Y Axis drive system comprised of a servo driven, high resolution ball screw provides smooth, accurate movement.

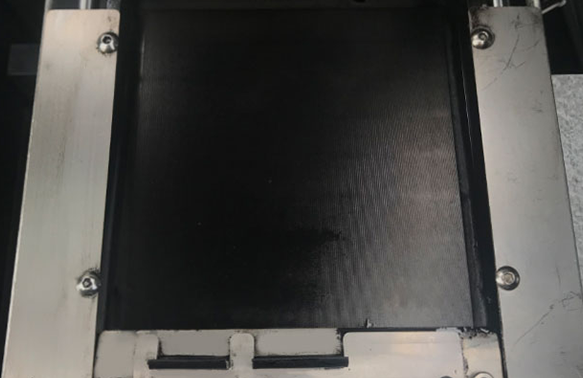

Print Head Maintenance Module
Compact print head maintenance module allows automatic purging, wiping and capping.
Specifications
| Print Technology | DOD piezoelectric inkjet print technology |
| Print Head | Ricoh GEN 4 printhead |
| Maximum Image Area | 21" X 27" (53 x 68 cm) |
| Maximum Screen Frame Profile | 1.63" (4.1 cm) |
| Maximum Screen Frame Size | 26" x 36" (66 x 91 cm) |
| Weight | 900LB (408 kg) |
| File Formats | Popular file formats, including PDF, EPS, PS, TIFF, PSD, etc. |
| Print Technology | DOD piezoelectric inkjet print technology |
| Print Head | 600 DPI piezo print head |
| Print Resolution (Recommended) | 1440 × 1200 dpi |
| Print Head Control | Automatic voltage and temperature control Variable droplet size control for grayscale printing Automatic print head maintenance |
| Ink | Color: Black, UV blocking Ink tank volume: 1.0 L |
| Software | ColorPRINT Server RIP Software Print Production Screen Software (PPS) Printer Control Software (PCS) |
| File Formats | Popular file formats, including PDF, EPS, PS, TIFF, PSD, etc. |
| Operating Environment | Temperature: 16-28°C (61-82°F) Relative humidity: 40-60% (Recommended) Altitude: up to 1000 m (3281ft) Light: Yellow/ Dark room |
| Power Requirements | Single phase 220V±10% (50/ 60Hz, AC); 4.5 Amps Maximum; 1000 W |
| Maximum Image Size (W × D) | 20″× 26″ (508 mm × 660.4 mm ) |
| Maximum Screen Frame Size (W × D) | 25″× 36″ (635 mm × 914.4 mm) |
| Dimensions (W × D × H) | 59.8″× 66.9″× 53.1″ (1520 mm × 1700 mm × 1350 mm) |
EFFICIENT WORKFLOW
ScreenPRO 300 integrates multiple advanced technologies, from RIP, .prt merging, job preview, to output production. The streamlined workflow enables users to achieve effcient, high-quality, and accurate screen production.
ColorPRINT RIP Software
• Screen .prt file generation;
• Presets for job properties, such as frequency, angle, and halftone dot shape;
• Screen and image size settings; print quality settings.
ColorPRINT - Main Window
ColorPRINT - RIP Window
ColorPRINT - Screen Window
Print Production Screen Software (PPS)
Various types of screen job previews, including different color channel previews, magnified dot previews, and mirror previews, help to carefully check the job before sending it to print.
PPS - Main Window
Template & Preview of the Merged Job
PCS - Main Window
Printer Control Software (PCS)
ColorPRINT - Main Window
